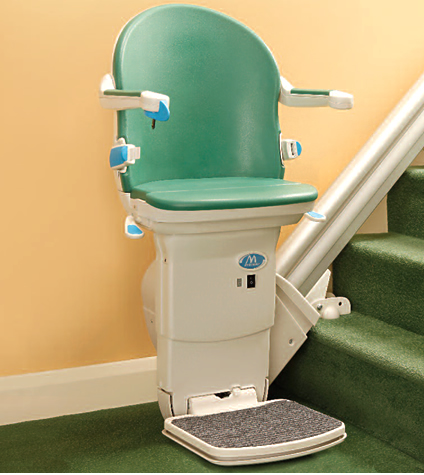

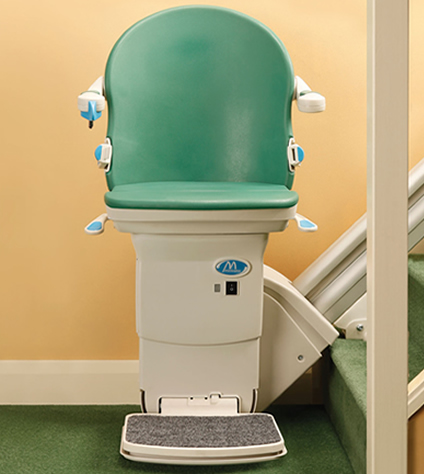

The Minivator 1000 Straight Stairlift

Stairlift Description

The Minivator 1000 stairlift offers you all the basic functions that you would expect plus the option to upgrade to a powered seat swivel and/or folding footplate.

Stairlift Features

Battery powered
Remote control Varible seat height
Powered swivel seat*
Narrow rail
Hidden rack



Sabre Stairlifts Ltd home pageabout Sabre Stairlifts Ltdchoosing the right stairliftstairlift brochurecontact us

Stairlift dimensions

minivator 1000 stairlift dimensions

next photo

minivator 100 stairlift

A    -  Minimum swivel radius - 725 mm
B     -  Minimum wall to seat back - 148 mm
C     -  Seat depth - 400 mm
D     -  Folded width to footplate - 387 mm
E     -  Open width to edge of footplate - 674 mm
F     -  Armrest width-external - 560 mm
G     -  Armrest width-internal - 440 mm
H     -  Seat back height - 424 mm
I     -  Footplate to seat height - 455-570 mm
J     -  Minimum footplate height - 75 mm
Minimum rail intrusion into staircase - 142 mm
Minimum rail overhang at top - 86 mm
Bottom parking space required - 640 mm

We can supply and install the Minivator 1000 straight stairlift throughout the whole of the UK, as well as Leeds, Harrogate, Bradford, Keighley, Huddersfield, Oldham and Burnley and all other towns in Yorkshire, Humberside & Lancashire.
