The Bison 50 Straight Stairlift
The Bison 50 stairlift has an extensive range of standard and optional features, so whatever your staircase or your personal requirements, we can customise the stairlift to suit those needs.
Stairlift Features
Battery powered
Remote control
Varible seat height
Powered swivel seat*
Powered footrest*
Slim line design
Hidden rack
* optional

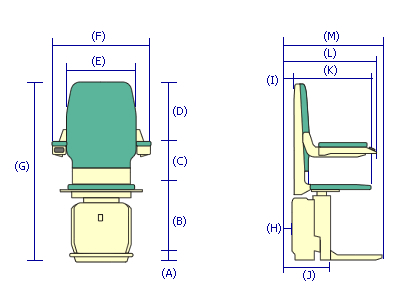

A Floor to top of footrest
50mm
B
Top of footrest to top of seat 450550mm
C
Top of seat to top of arms
247mm
D
Top of arms to top of seatback
388mm
E
Width between armrests
450mm
F
Overall width
567mm
G
Overall height
10651535mm
H
Back of rolling chassis to wall
7mm
I
Back of seat to wall
20mm
J
Front of carriage to wall
250mm
K
Front of seat to wall
482mm
L
Front of arms to wall
537mm
M Front of standard footrest to wall
615mm
N
Folded width
297mm
Distance from front of rail to wall
200mm
Distance required at bottom of stairs
650mm
Minimum width for arms to swivel
700mm
Distance from folded footrest to wall
810mm
Front of arms to wall
304
mm
We can supply and install the Bison 50 straight stairlift throughout the whole of the UK, as well as Leeds, Harrogate, Bradford, Keighley, Huddersfield, Oldham and Burnley and all other towns in Yorkshire, Humberside & Lancashire.
